FRAME:
coded imaging of multiple exposures

FRAME Imaging Technology

The FRAME imaging technology offers the unique ability to acquire and store multiple exposures in one frame of a standard camera sensor. This new Frequency Recognition Algorithm for Multiple Exposures (FRAME) imaging concept uses an image-coding strategy, where different exposures are given a unique structural code allowing multiple on-chip exposures before readout. At the end of such a superimposed recording each image is unlocked by its unique structural code. This on-chip recording of structural coded images opens up a variety of new measurement schemes such as

  • ultra-high-speed imaging
  • instantaneous 3-dimensional imaging
  • simultaneous, multispectral imaging


Ultra-high-speed imaging
Together with researchers from Lund University LaVision has developed a FRAME imaging setup for high speed shadow imaging. The FRAME illumination unit consists of 4 pulsed LEDs firing a sequence of 4 structural coded illuminations at a frequency of up to 1 MHz. A standard still camera captures on-chip all 4 exposures. After readout a post-processing procedure decodes the multi-exposure recording into the 4 time-separated snapshots.

FRAME HS Shadow
Imaging System
  • 4 images at 1 MHz frame rate using standard high resolution camera
  • FRAME illumination unit for structural light exposure
  • cost effective alternative to expensive high-speed cameras

no-img

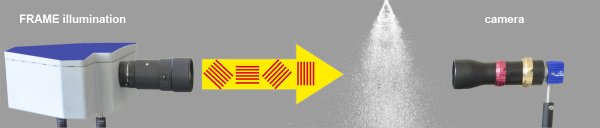

High-speed spray shadowgraphy applying FRAME imaging technology
no-img

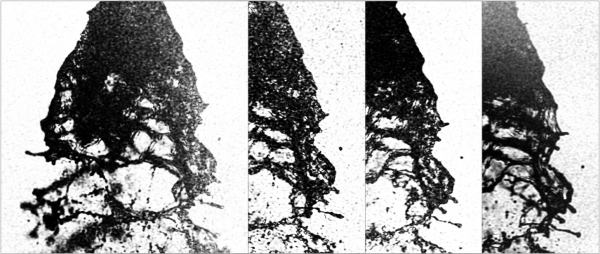

High-speed spray images reconstructed from one FRAME recording
The temporal resolution and frame rate of FRAME imaging are determined by the light source. Using e. g. femtosecond lasers in combination with a FRAME projector will permit video imaging at several trillion frames/s – using a single standard high resolution camera!
World‘s fastest camera: 5 trillion frames/s                            courtesy: Lund University


Instantaneous 3-dimensional imaging
Coded light sheets at different spatial locations are used in combination with FRAME imaging technology for 3D laser imaging of e. g. 3D concentration fields of LIF species in flames.

no-img

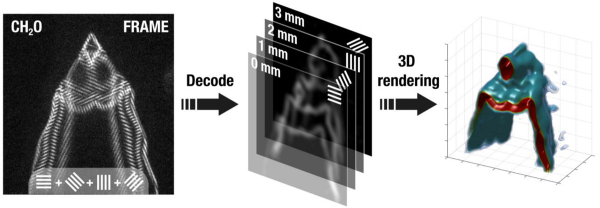

3D-LIF imaging applying FRAME technology                courtesy: Lund University


Simultaneous, multispectral imaging
Performing multispectral imaging with FRAME allows the simultaneous recording of images with different wavelength information. For example, species-specific LIF processes in biological samples can be recorded parallel in time for higher throughput screening.

no-img

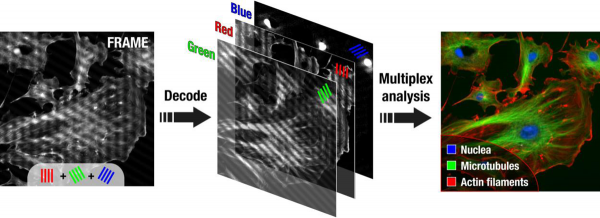

FRAME for simultaneous multispectral imaging             courtesy: Lund University

Produktinformation

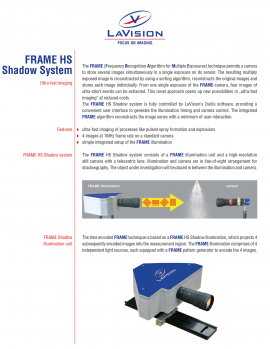

no-img FRAME HS Shadow System
