FlameMaster Raman Imaging System

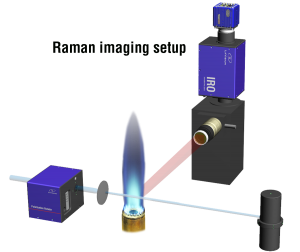

The FlameMaster Raman laser imaging system measures simultaneously the concentration profiles of all majority species in the flame together with the flame temperature along a line focus (1D). Scanning the line focus through the flame generates 2D or even 3D views of the flame composition and temperature, respectively.

no-img
no-img

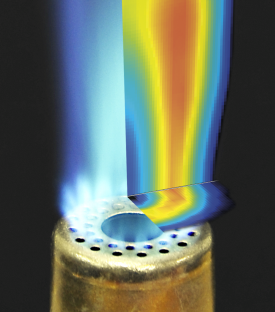

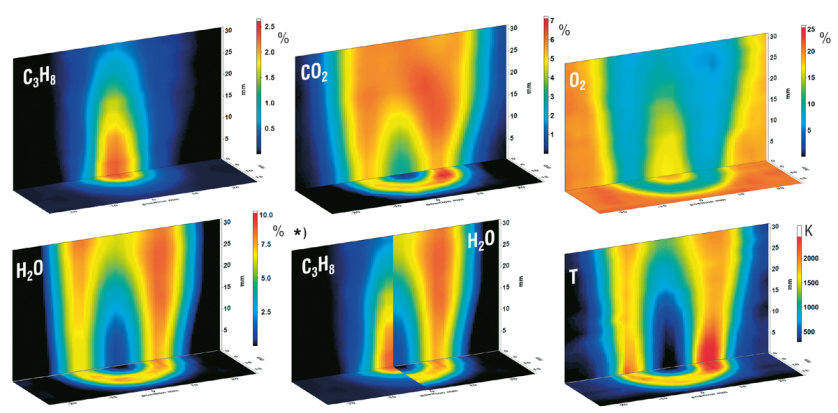

Axial and radial cuts of the propane-fueled Bunsen burner showing fuel (C3H8), CO2, O2, H2O concentrations and flame temperature. The *) – marked image presents the complementary fuel and water distribution

System upgrades
