(Laser) Imaging in Flames

LaVision‘s FlameMaster system family is designed to find new concepts for the realization of more efficient and cleaner combustion devices. These (laser) imaging systems are designed for multi-parameter measurements in all kind of flames with high spatial and temporal resolution.

Our FlameMaster imaging systems support online flame monitoring in industrial devices and provide quantitative information about species (particle) concentration, gas composition and flame temperature in laser illuminated flame areas. For each imaged combustion parameter a dedicated set of hardware and software modules is provided offering the possibility for straightforward system upgrades. This modular nature for imaging upgrades provides full flexibility for different flame imaging applications.

FlameMaster Application Matrix

                                                       FlameMaster Application Matrix (Laser) Imaging System
Flame Monitoring Flame Emission, Pyrometry FlameMaster inspex
 Fuel Imaging
Mixture Preparation
 Tracer (Fuel) LIF
 FlameMaster
Multifunctional
 Formaldehyde, HCOH
 Formaldehyde LIF
 Flame Temperature
 Rayleigh Thermometry
 Soot Concentration
Particle Size
Laser Induced Incandescence LII
 Gas Composition
Flame Temperature
Raman Imaging  FlameMaster
Raman
Flame Species & Radicals:
OH, NO, CH, CN, CO....
 Tunable LIF  FlameMaster
Tunable-LIF
 Time-resolved Flame Imaging
 High-Speed (Laser) Imaging  FlowMaster
High-Speed
 3D-Flame Imaging
 Tomographic Flame Imaging  FlameMaster
3D
 Flow Field Imaging in Flames
 PIV  FlowMaster
FlameMaster

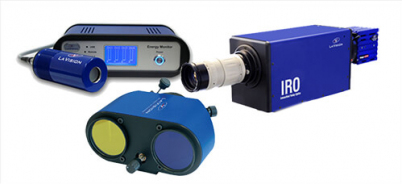

System Features
  • Integrated and modular system designs
  • Complete hardware operation under DaVis software control
  • Laser sheet correction incl. laser beam absorption compensation
  • Most efficient LIF technique for each application and flame radical
  • Combination of techniques for multi-parameter flame imaging
