Techniques

Optical measurement techniques are non-intrusive in nature and provide high resolution measurements in space and time with remote detection capabilities. Laser imaging measures in-situ a large number of flow variables such as density, temperature, species (particle) concentration and velocity. Short laser pulses freeze the motion of the flow, and high-speed imaging allows time-resolved measurements. Tomographic imaging techniques like Tomo-PIV and Tomo-LIF make 3-dimensional imaging possible.

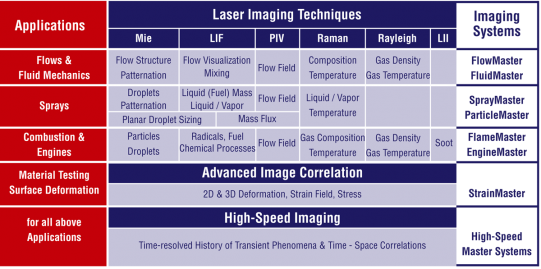

LaVision’ s product portfolio is exclusively based on the following optical measurement techniques:



Laser Imaging in Flows, Sprays and Combustion:

  • Particle Image Velocimetry (PIV)
  • Laser Induced Fluorescence (LIF)
  • Laser Induced Incandescence (LII)
  • Mie Scattering
  • Rayleigh Scattering
  • Raman Scattering

Particle Imaging:

  • Shadowgraphy
  • Interferometric Mie Imaging (IMI)



Droplet Detection:

  • Phase Doppler Interferometry (PDI)


Gas Sensing:

  • Infra-Red (IR) Absorption


Dynamic Surface (Volume) Imaging:

  • Digital Image (Volume) Correlation (DIC, DVC)
